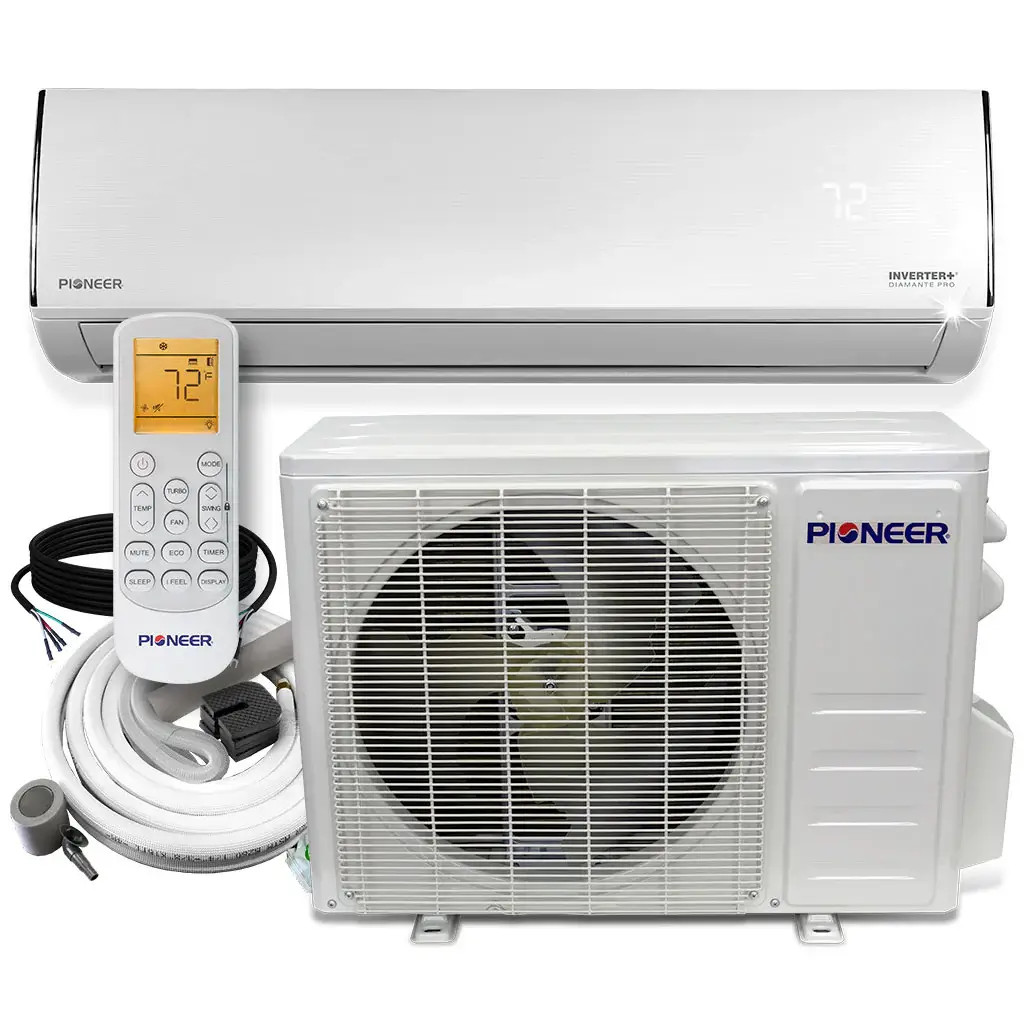

Pioneer® Diamante Pro Series 24,000 BTU 19 SEER2 Ductless Mini-Split Air Conditioner Inverter+ Heat Pump Full Set 230V with 16 Ft. Kit

Elevate your indoor comfort with the Pioneer® Diamante Pro Series 24,000 BTU 19 SEER2 Ductless Mini-Split Air Conditioner Inverter+ Heat Pump Full Set 230V. Enjoy premium efficiency and comfort with high wall mounted design, variable speed DC inverter mode, and low ambient unit capability. Perfect for residential or commercial spaces, this system offers precise temperature control and energy savings

Summary

• High Efficiency Diamante Pro Ductless Mini Split Heat Pump System
• Cooling capacity: 24,000 BTU/H with 19 SEER2 / 10.0 EER2 efficiency
• Heating capacity: 24,400 BTU/H with 8.5 HSPF2 / 3.21 COP2 efficiency
• Voltage: 208~230V, 60Hz, 1Ph
• High Wall Mounted Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode
• Low Ambient Unit (-13°F)

What's Included

• Indoor Unit
• Outdoor Unit
• Wireless Remote Control (with wall holder and batteries)
• 16 Ft. Copper Lines
• 16 Ft. Electrical Wire
• 10 Ft. Drain for indoor/outdoor
• Wall Passage Sleeve
• Putty for Wall Hole
• Leak Guard Sealer
• Wrapping Tape
• Installation Manual
• User’s Manual

Performance Data

• Power Supply: 208~230V, 60Hz, 1Ph
• Cooling Rated Capacity: 24,000 BTU/h
• Cooling Capacity Range: 7,200~26,400 BTU/h
• Cooling SEER2: 19.0 BTU/W.h
• Cooling EER2: 10.0 BTU/W.h
• Heating Rated Capacity: 24,400 BTU/h
• Heating Capacity Range: 7320~26,840 BTU/h
• Heating HSPF2 (Region IV/V): 8.5 / 7.0 BTU/W.h
• Heating C.O.P.2 (47°F/5°F): 3.21 / 1.75 W/W
• Refrigerant Type: R410A/50.1 oz.
• Suitable Area: 550~1000 Sq.F

Indoor Unit Data

• Part Number: WT024GLFI19HLE
• Air Flow (Hi/Med/Lo): 847 / 700 / 641 CFM
• Sound Level (Hi/Med/Lo): 48 / 43 / 38 dB(A)
• Net Dimensions (WDH): 46-5/8 x 10-1/4 x 13-3/8 Inches
• Carton Dimensions (WDH): 49-3/4 x 13-1/4 x 16-1/2 Inches
• Net / Gross Weight: 37.5 / 46.3 lbs

Outdoor Unit Data

• Part Number: YN024GLFI19RPE
• Breaker Needed: 20A (double-pole)
• Sound Level: 58.0 dB(A)
• Net Dimensions (WDH): 33-1/4 x 15 x 27-1/2 Inches
• Carton Dimensions (WDH): 37-3/4 x 17 x 29-1/2 Inches
• Net / Gross Weight: 95.9 / 107.3 lbs
