Pioneer® 48,000 BTU 18.5 SEER2 8-Way Slim Cassette Mini-Split Air Conditioner Heat Pump System Full Set 230V
In Stock
⚡ Quick Answer
We’ll ship this on a schedule that suits your kitchen. Pause, change, or cancel anytime.
Description
Ceiling Cassette Mini Split
Indoor units of this type of ceiling-mounted ductless mini split system are designed to be mounted as recessed into the ceiling, where only a decorative air exchange panel is visible. Our ceiling cassette mini splits are equipped with digital frequency control for automatic capacity adjustments, a convenient remote controller, automatic air-sweeping louvers, and cooling, heating, dehumidification, and ventilation modes. Ceiling mini split systems also come with remote supply ducting and fresh air intake options. Our ceiling ductless mini splits come in a variety of combinations, which you can mix and match to meet your needs. The ceiling-mounted mini split system comes in a wide range of capacities ranging from 9000 to 48000 BTU. Check out our selection today!

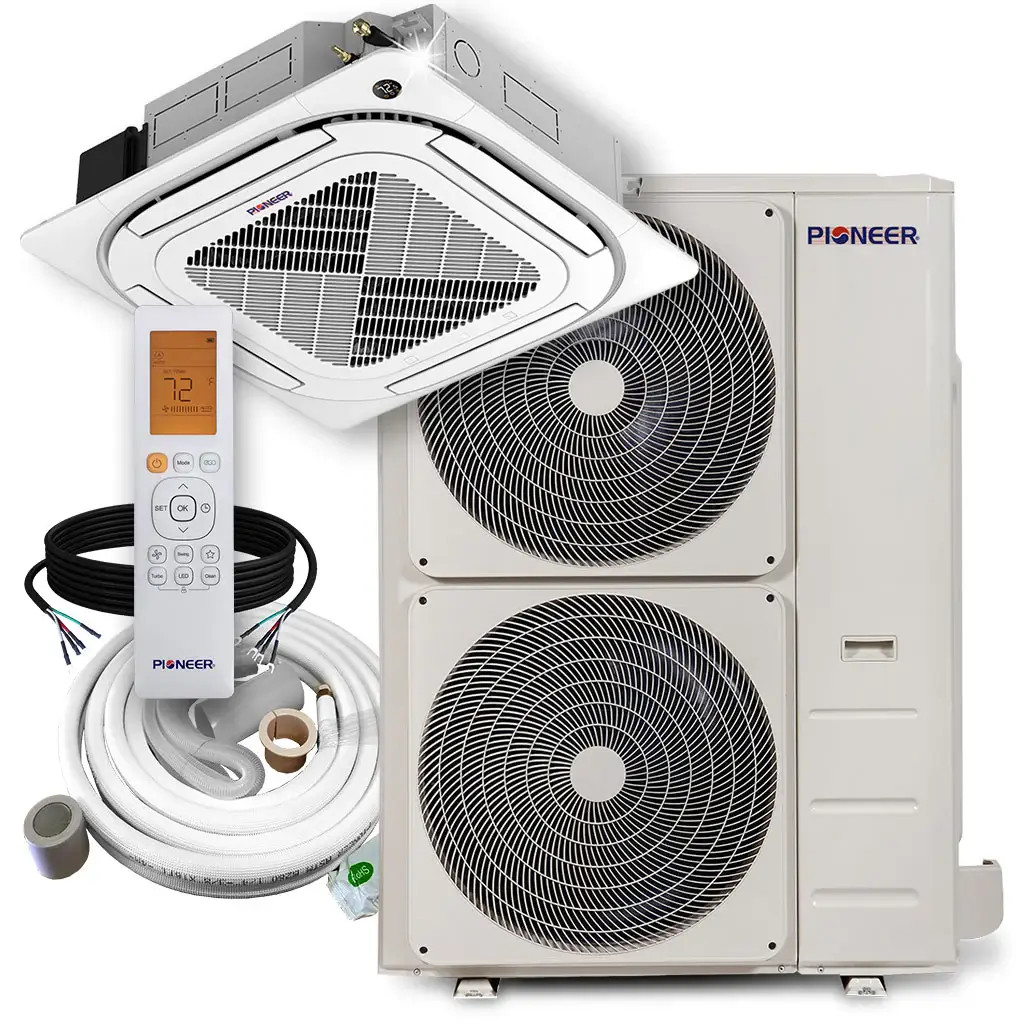

What's Included
- Indoor Unit
- Outdoor Unit
- Panel
- Wireless Remote Control

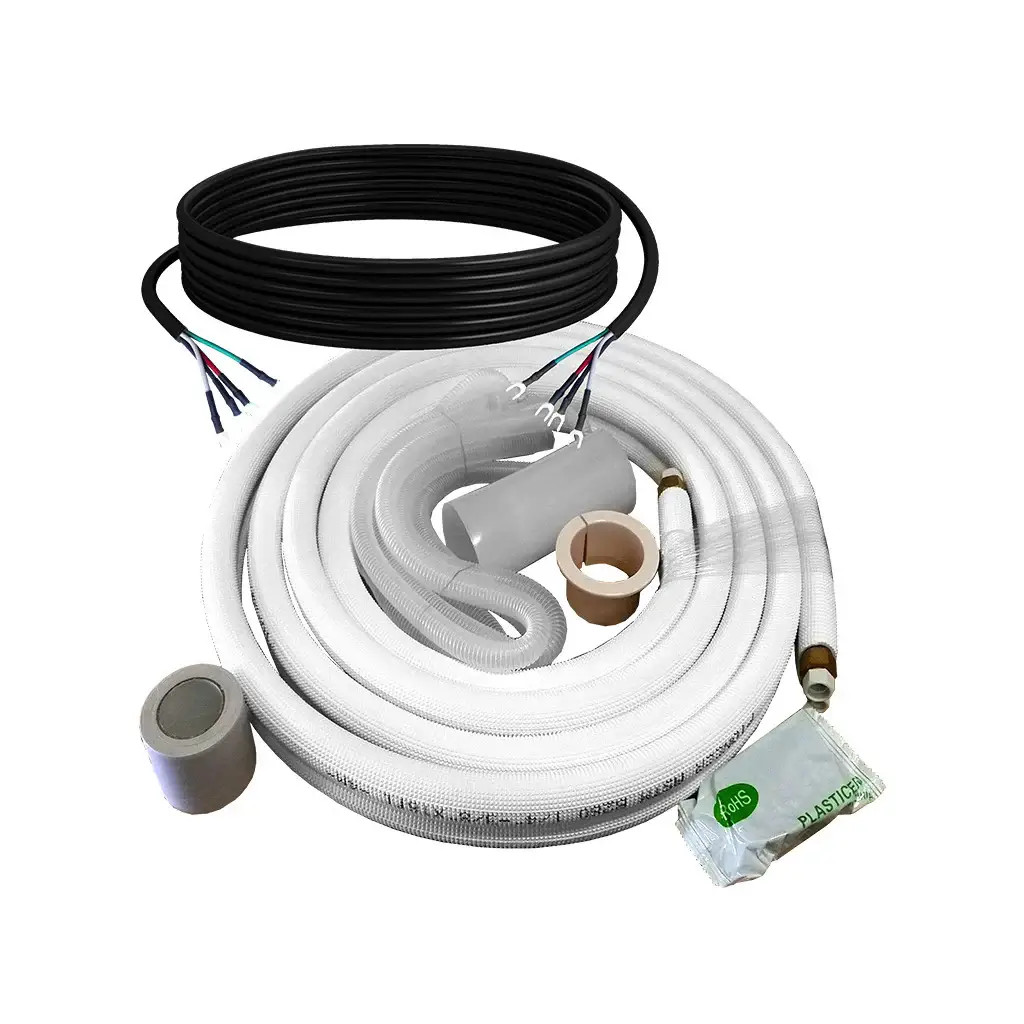

- Various Installation Kit Options Available
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Performance Data
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 48,000 BTU/h
- Cooling Capacity Range: 16,600~48,000 BTU/h
- Cooling SEER2: 18.5 BTU/W.h
- Cooling EER2: 9.5 BTU/W.h
- Heating Rated Capacity: 50,000 BTU/h
- Heating Capacity Range: 11,900~52,000 BTU/h
- Heating HSPF2: 9.8 BTU/W.h
- Heating C.O.P.2: 3.1 W/W
- Refrigerant Type: R410a
- Suitable Area: 1,350~1,800 Sq.F
Indoor Unit Data
- Model: CB048GMFILDFHE
- Air Flow (Hi/Med/Lo): 1,171 / 1,059 / 935 CFM
- Sound Level (Hi/Med/Lo): 55.0 / 53.0 / 50.0 dB(A)
- Net Dimensions (WDH): 32"-5/8 x 32"-5/8 x 11"-3/8 Inches
- Carton Dimensions (WDH): 35"-7/8 x 35"-7/8 x 13" Inches
- Net / Gross Weight: 64.6 / 74.1 Lbs

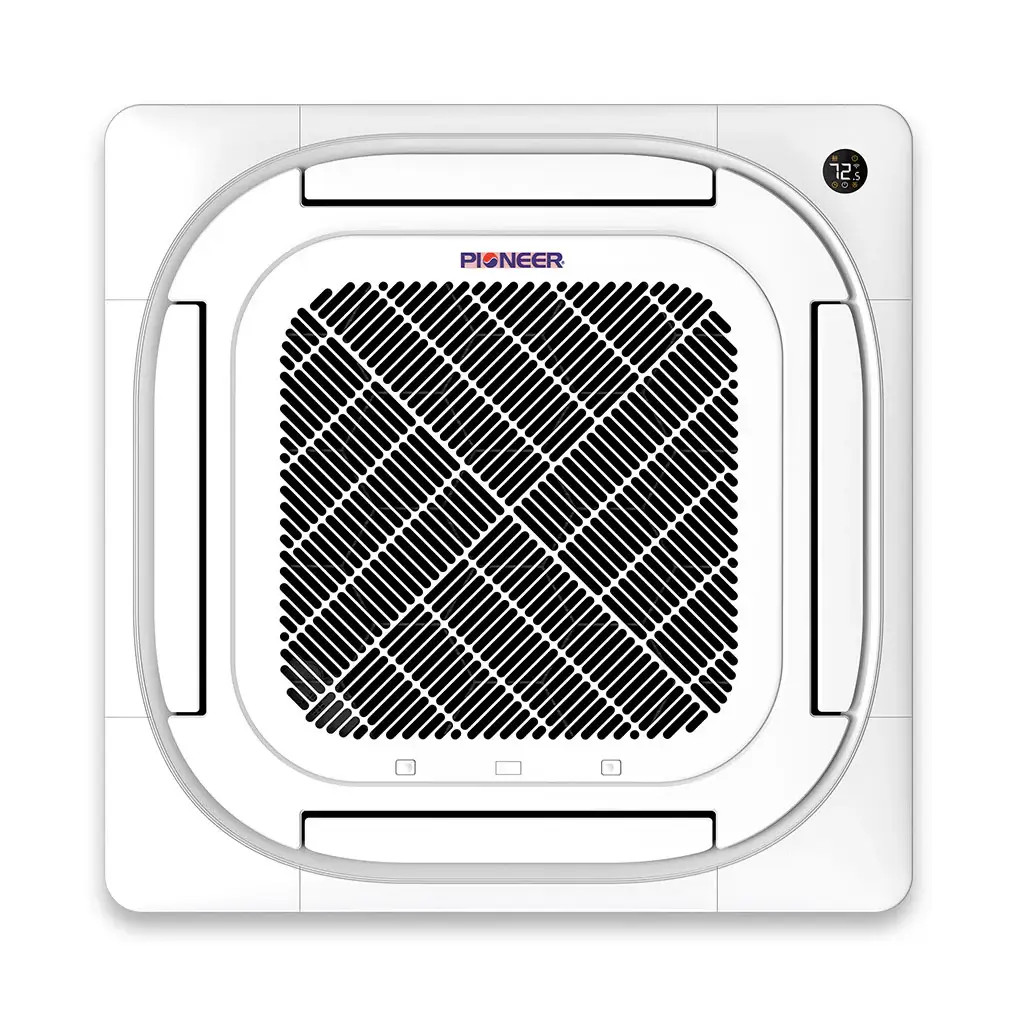

Panel Data
- Net Dimensions (WDH): 37"-5/8 x 37"-5/8 x 2"-1/4 Inches
- Carton Dimensions (WDH): 40"-3/4 x 40"-3/4 x 3"-1/2 Inches
- Net / Gross Weight: 13.2 / 19.8 Lbs

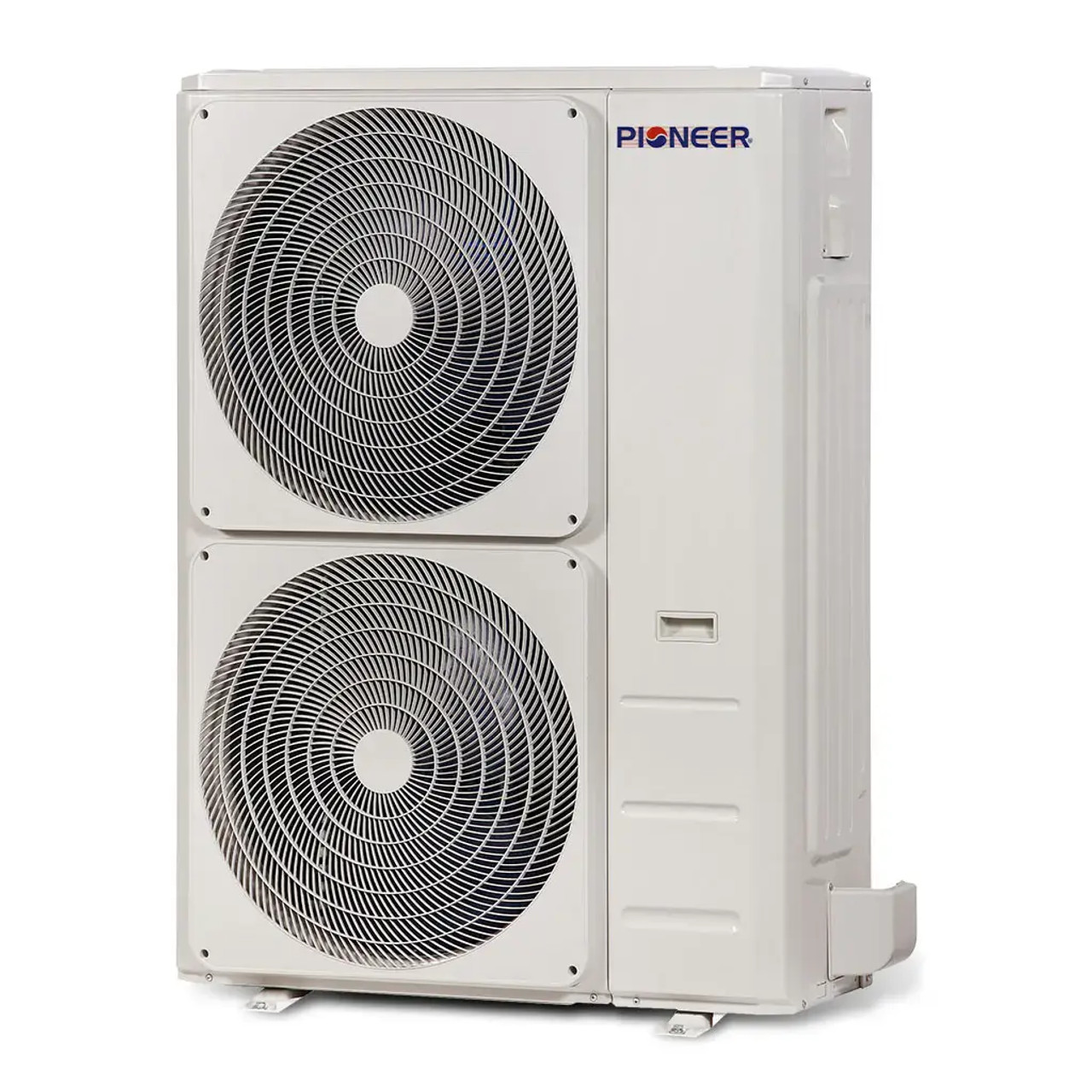

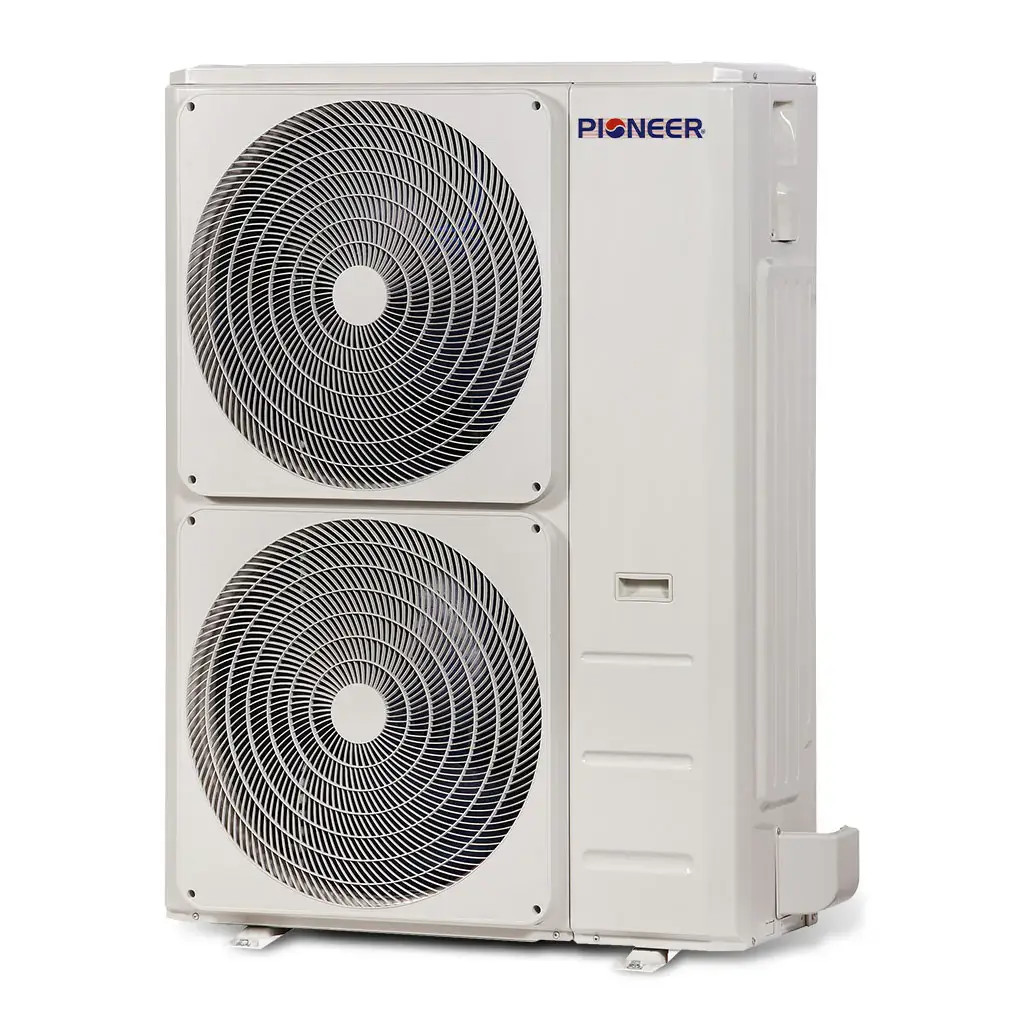

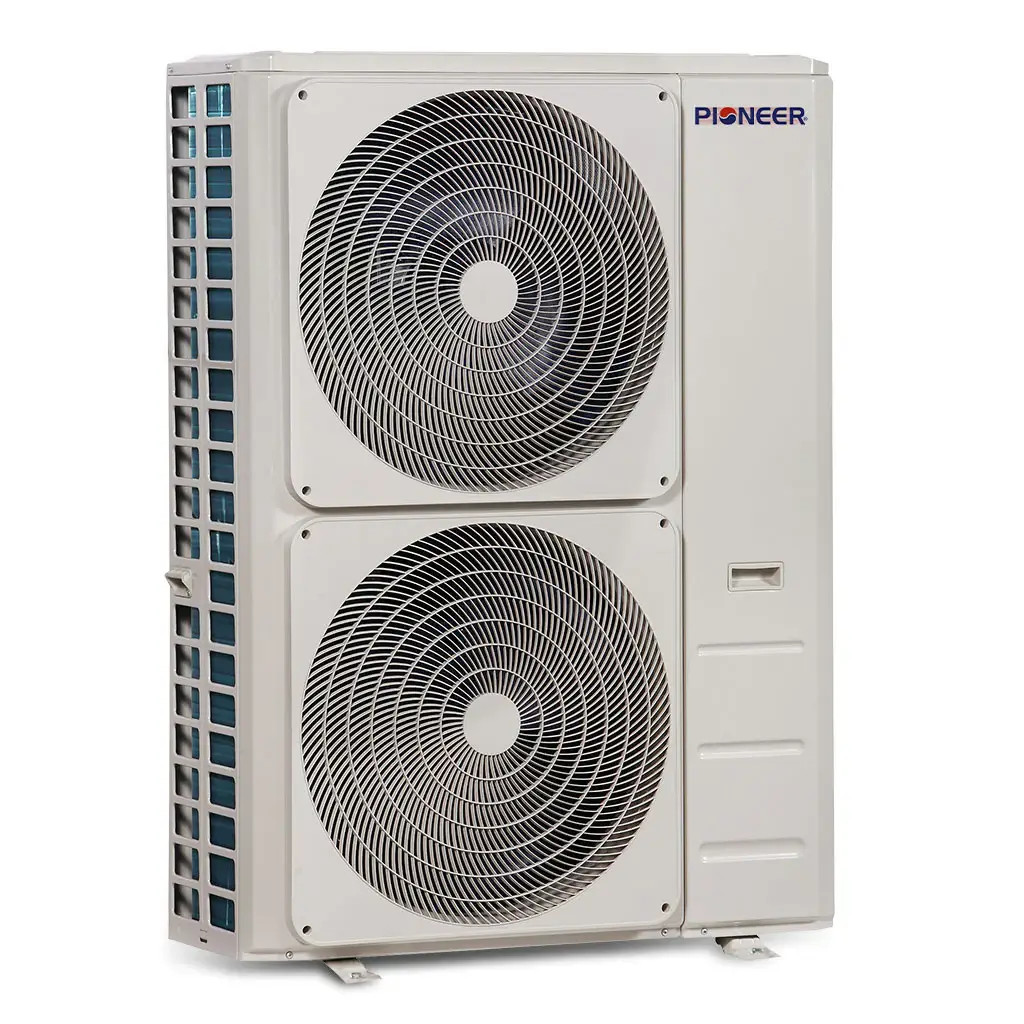

Outdoor Unit Data
- Model: YN048GMFI18RUE
- Sound Level: 65.0 dB(A)
- Net Dimensions (WDH): 37"-1/2 x 16"-3/8 x 52"-1/2 Inches
- Carton Dimensions (WDH): 43"-1/8 x 19"-1/2 x 58"-1/2 Inches
- Net / Gross Weight: 219.1 / 249.1 Lbs
- Breaker Needed: 40A (double-pole)
- Brand
- Pioneer
- Availability:
- Ships in 3 days
