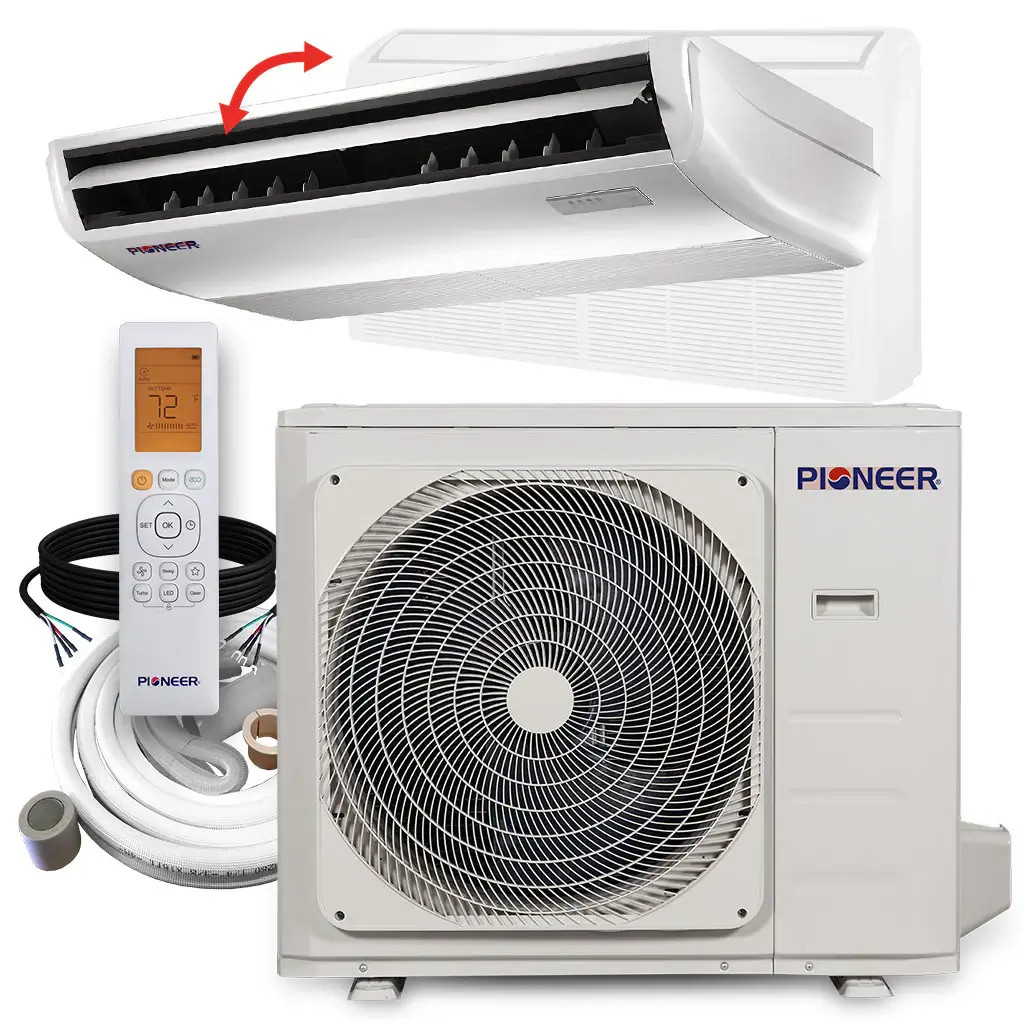

Pioneer® 36,000 BTU 19 SEER2 Floor/Ceiling Mini-Split Inverter+ Air Conditioner Heat Pump System Full Set 230V

Ductless Floor-Ceiling Mini Splits

Pioneer Mini Split offers a wide selection of flexible ductless floor-ceiling mini splits that are ideal for homes and commercial properties. These low-mount mini split systems come with ductless indoor units that can be mounted in various positions based on requirements, including ductless air conditioning ceiling mounts. You can mount our indoor floor-ceiling flex mount mini split units of smaller-capacity systems as floor consoles or in low wall-attached positions. Our larger-capacity versions come with larger indoor units; this allows you to have a ceiling-suspended mini split. Our Pioneer mini split floor mount and ductless air conditioning ceiling mount systems are equipped with digital frequency control for automatic capacity adjustments, convenient remote controller, automatic air sweeping louvers, cooling, heating, dehumidification, ventilation modes, and with fresh air intake options. Check out our selection of ductless floor-ceiling mini splits!

What's Included

• Indoor Unit
• Outdoor Unit
• Wireless Remote Control
• Various Installation Kit Options Available
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty

Standard

• Front Desk Control
  With a smart control board, Pioneer air conditioners can be turned on/off via long distance control signals.
• 46° F Heating
• Refrigerant Leakage Detect
  Indoor unit shows error code "EC" and stops automatically when refrigerant leakage is detected. This protects the compressor from high temperature damage due to refrigerant leakage.
• Anti-cold Air Function
  Indoor fan speed is regulated automatically from the lowest grade to the setting grade according to evaporator temperature when the unit just starts heating operation. This function can prevent cold air blowing out to avoid discomfort to the users.
• Emergency Using
• Low Ambient Cooling
  With built-in low ambient kit or special designed PCB, outdoor fan speeds can be changed automatically according to condensation temperature. The air conditioner can run cooling operation even when the outdoor ambient temperature is down to -15°C.
• Follow Me
  Temperature sensor built in the remote controller will sense it’s surrounding temperature. The unit will adjust the room temperature more accurately to give you comfort.

Performance Data

• Power Supply: 208~230V, 60Hz, 1Ph
• Cooling Rated Capacity: 36,000 BTU/h
• Cooling Capacity Range: 11,476~36,000 BTU/h
• Cooling SEER2: 19.0 BTU/W.h
• Cooling EER2: 8.5 BTU/W.h
• Heating Rated Capacity: 38,000 BTU/h
• Heating Capacity Range: 11,467~38,000 BTU/h
• Heating HSPF2 (Region IV/V): 9.0 / 7.0 BTU/W.h
• Heating C.O.P.2 (47°F/5°F): 2.68 / 1.8 W/W
• Refrigerant Type: R410a
• Suitable Area: 900~1,350 Sq.F

Indoor Unit Data

• Model: UB036GMFILCFHD
• Air Flow (Hi/Med/Lo): 1,036 / 917 / 638 CFM
• Sound Level (Hi/Med/Lo): 51.5 / 48.0 / 40.5 dB(A)
• Net Dimensions (WDH): 50.5 x 26.5 x 9.3 Inches
• Carton Dimensions (WDH): 53.5 x 29.8 x 12.4 Inches
• Net / Gross Weight: 69 / 82 Lbs

Outdoor Unit Data

• Part Number: YN036GMFI18RUE
• Sound Level: 63.5 dB(A)
• Breaker Needed: 40A (double-pole)
• Net Dimensions (WDH): 37.3 x 16.2 x 31.8 Inches
• Carton Dimensions (WDH): 42.8 x 19.6 x 34.0 Inches
• Net / Gross Weight: 155.4 / 166.2 Lbs
