Pioneer® 48,000 BTU 15.1 SEER2 Ceiling Concealed Ducted Mini-Split Inverter+ Air Conditioner Heat Pump System Full Set 230V

$CAD8,228.99 $CAD7,480.99
(You save $CAD748.00)
UPC:
7425138083047
Availability:
Ships in 3 days
Shipping:
Free Shipping
Hurry! Only left
5 customers are viewing this product

Concealed Mini Splits

Pioneer® Ducted concealed mini split systems offer climate control, including hidden mini split AC for multiple rooms and areas, utilizing a network of air ducts (existing or field designed) using a single set of equipment. The concealed duct mini split system is ideal for use in specific climate zones with distinctive separations, such as a master suite, where the zone can be split up into sub zones (a bathroom, study, dressing room, etc.). In this setting, a single set of equipment will properly condition all areas of the entire zone based on the same comfort settings. Our hidden ducted mini split system offerings include six capacities—such as our ceiling concealed mini split and mini split slim duct systems—to cover distinctive zones of every size and complexity. Check out our selection of concealed duct mini split systems today, and start enjoying hidden duct mini split AC and heat!

More details about Pioneer® RYB Series

What's Included

  • Indoor Unit
  • Outdoor Unit

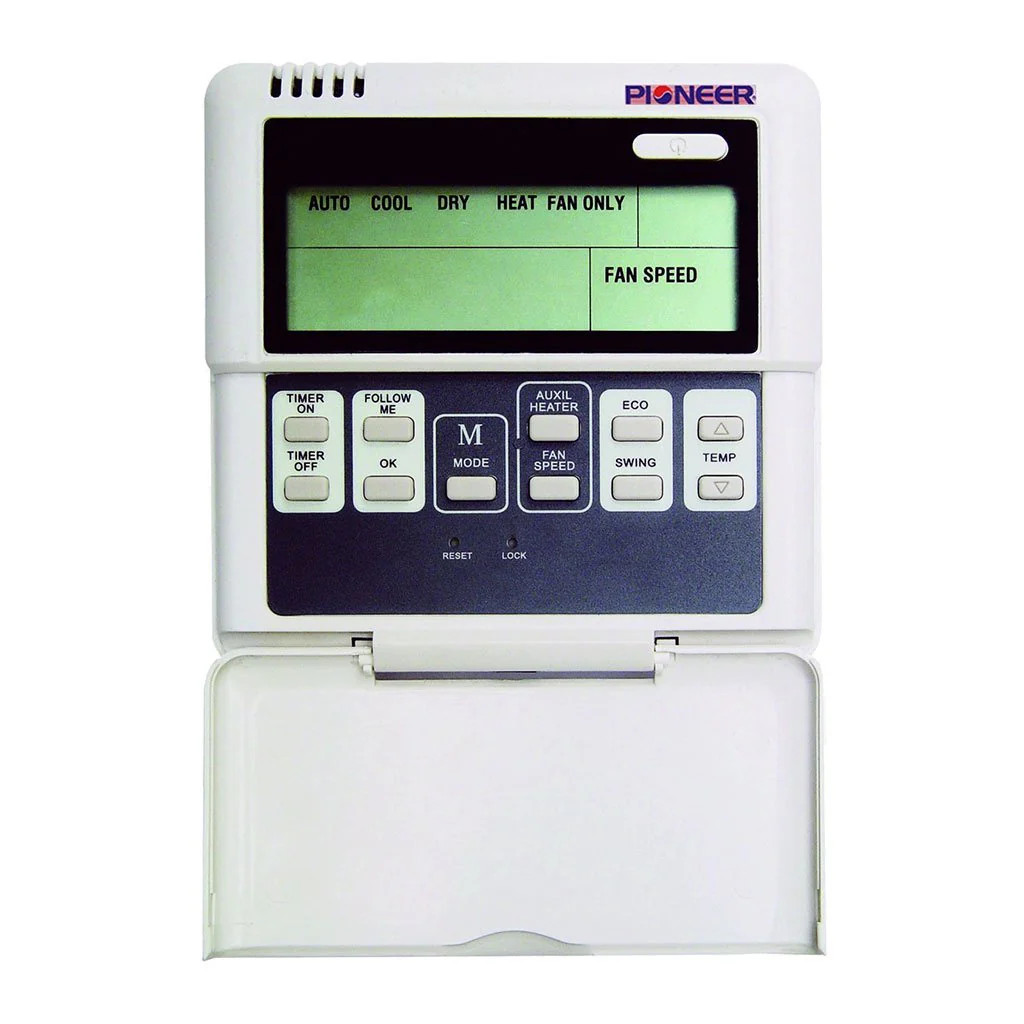

  • Wire Remote Control
  • Various Installation Kit Options Available
  • Flare Connection Leak Guard Sealer
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty

Performance Data

  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 48,000 BTU/h
  • Cooling Capacity Range: 10,500~48,000 BTU/h
  • Cooling SEER2: 15.1 BTU/W.h
  • Cooling EER2: 8.5 BTU/W.h
  • Heating Rated Capacity: 50,000 BTU/h
  • Heating Capacity Range: 11,000~53,400 BTU/h
  • Heating HSPF2 (Region IV/V): 9.3 / 7.3 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.19 / 1.91 W/W
  • Refrigerant Type: R410a
  • Suitable Area: 1,350~1,800 Sq.F

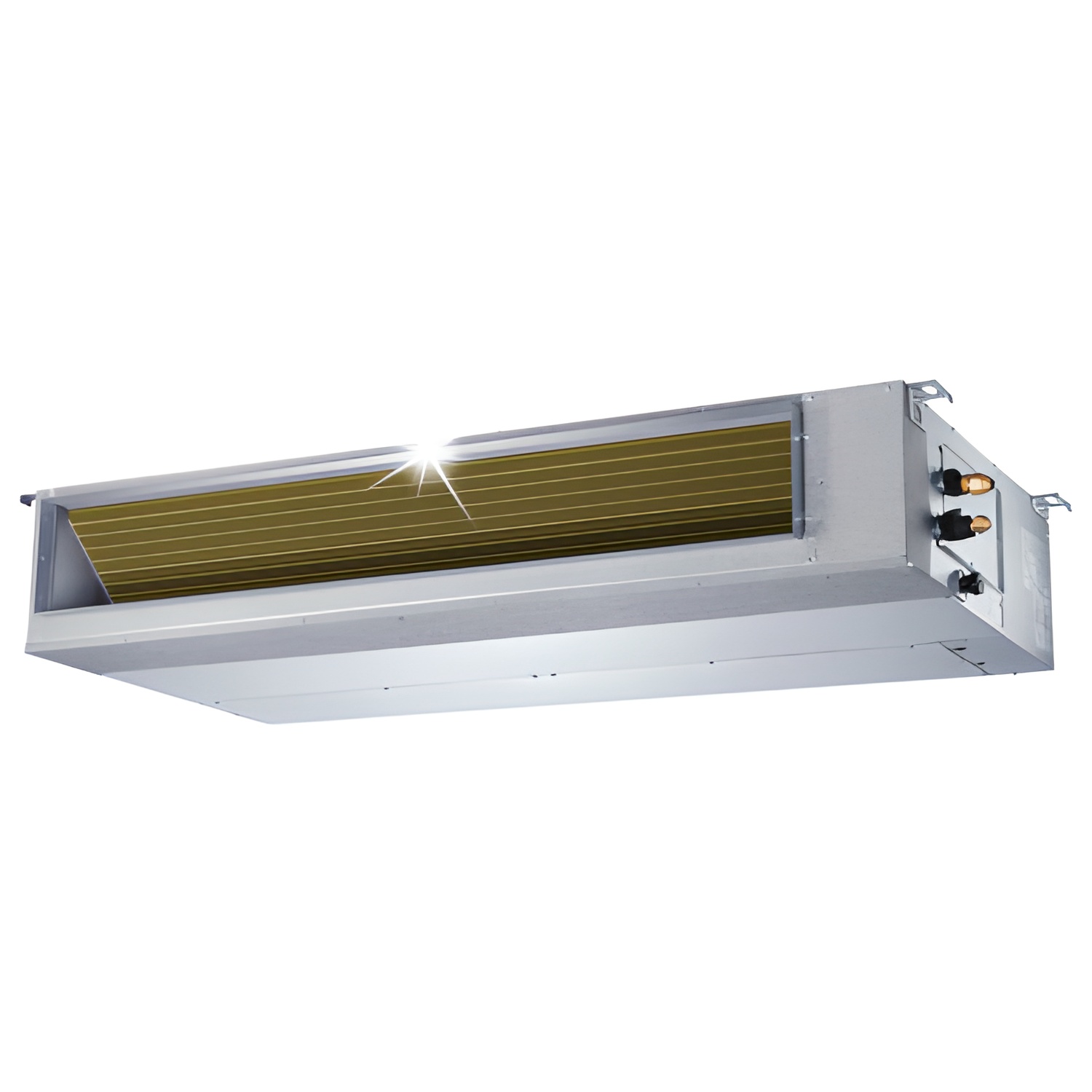

Indoor Unit Data

  • Part Number: RB048GMFILDFHD
  • Air Flow (Hi/Med/Lo): 1,228 / 1,031 / 715 CFM
  • External Static Pressure: 0 ~ 0.64 Inch WC
  • Sound Level (Hi/Med/Lo): 52.0 / 50.0 / 49.0 dB(A)
  • Net Dimensions (WDH): 47"-1/4 x 34"-3/8 x 11"-3/4
  • Carton Dimensions (WDH): 55"-1/4 x 36" x 14"
  • Net / Gross Weight: 120 / 142 Lbs

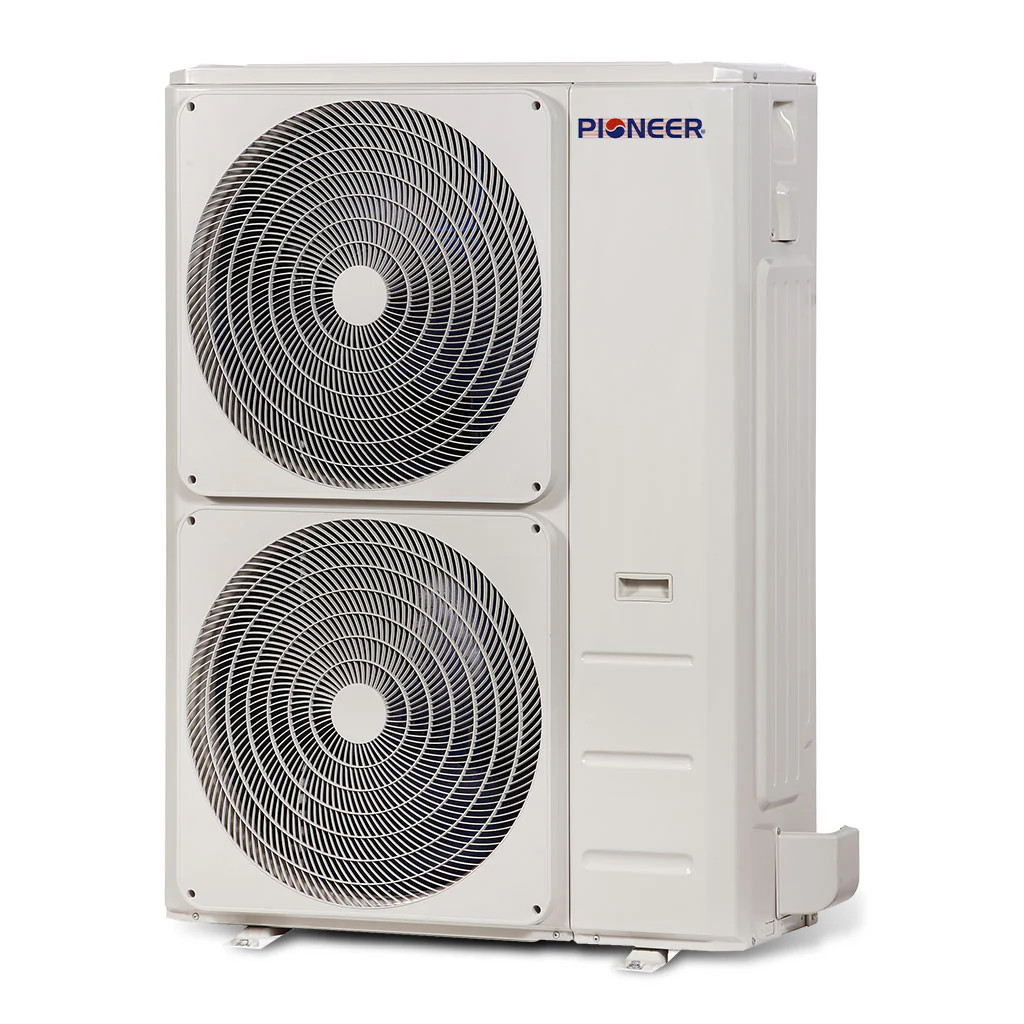

Outdoor Unit Data

  • Part Number: YN048GMFI18RUE
  • Sound Level: 65 dB(A)
  • Breaker Needed: 40A (double-pole)
  • Net Dimensions (WDH): 37"-1/2 x 16"-3/8 x 52"-1/2
  • Carton Dimensions (WDH): 43"-1/8 x 19"-1/2 x 58"-1/2
  • Net / Gross Weight: 219 / 249 Lbs
