Pioneer® Diamante Ultra 9,000 BTU 23 SEER2 Ductless Mini-Split Inverter++ Energy-Star Wi-Fi Air Conditioner Heat Pump Full Set 115V with 16 Ft. Kit

Enhanced Modern Design

How do you improve upon an air handler that’s already silent? You make the appearance of it silent as well, with a premium encasing and elegant textures. A matte-frost finish ensures less fingerprints and time spent wiping. The curved edges give the system a softer look, and the LED display has been modified to show the set temperature in a more subdued fashion.

Summary

• Ultra High Efficiency Diamante Ultra Ductless Mini Split Heat Pump System
• Cooling capacity: 9,000 BTU/H with 23 SEER2 / 12.5 EER2 efficiency
• Heating capacity: 9,500 BTU/H with 9.0 HSPF2 / 3.5 COP2 efficiency
• Voltage: 110/120V, 60Hz, 1Ph
• High Wall Mounted Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode
• Low Ambient Unit (-13°F)
• Wireless Internet Access Included (Via Free Smartphone App)

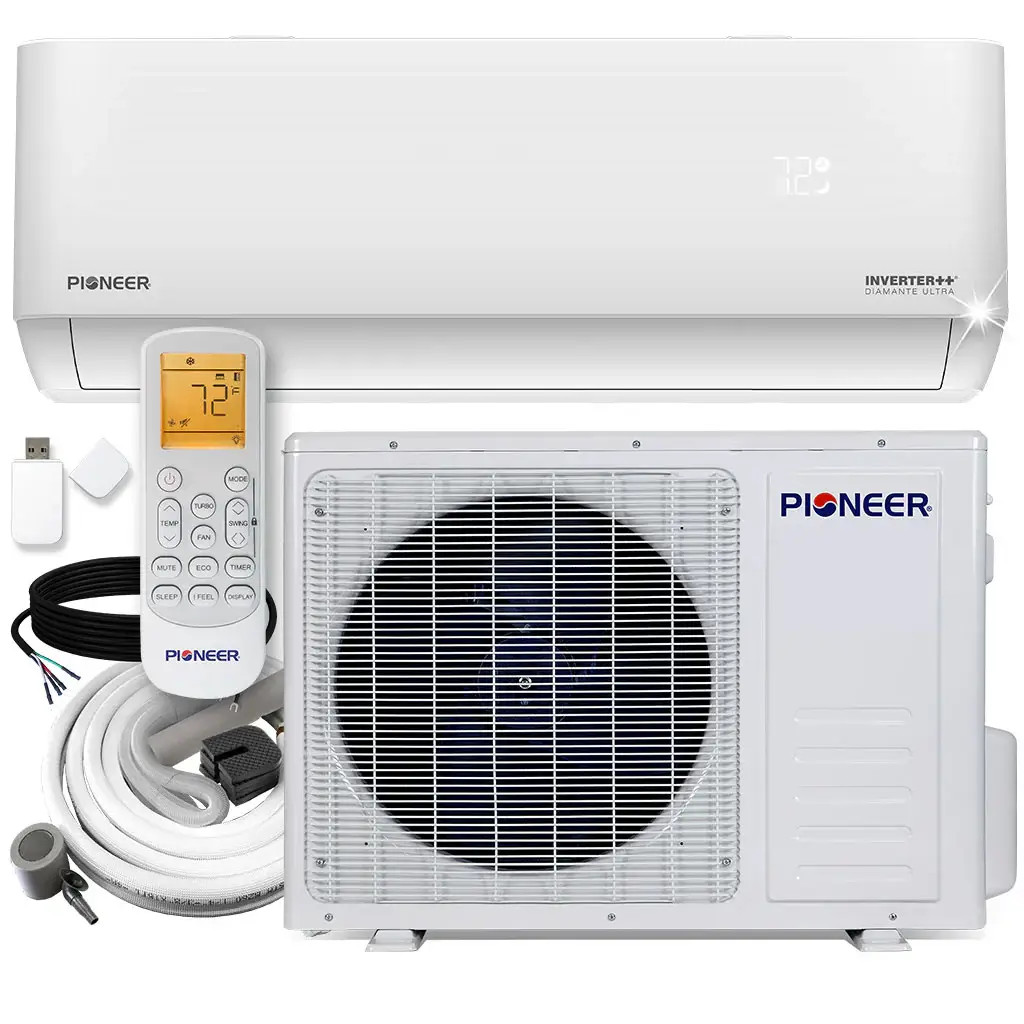

What's Included

• Indoor Unit
• Outdoor Unit
• Wireless Remote Control (with wall holder and batteries)
• Internet Control Module
• 16 Ft. Copper Lines
• 16 Ft. Electrical Wire
• 10 Ft. Drain for indoor/outdoor
• Wall Passage Sleeve
• Putty for Wall Hole
• Leak Guard Sealer
• Wrapping Tape
• Installation Manu

Performance Data

• Power Supply: 115V, 60Hz, 1Ph
• Cooling Rated Capacity: 9,000 BTU/h (0.75 Ton)
• Rated Power Input (Cooling): 710W
• Cooling SEER2: 23.0 BTU/W.h
• Cooling EER2: 12.5 BTU/W.h
• Heating Rated Capacity: 9,500 BTU/h (0.8 Ton)
• Rated Power Input (Heating): 730W
• Heating HSPF2: 9.0 BTU/W.h
• Heating C.O.P.: 3.5 W/W
• Refrigerant Type: R410A
• Recommended Application Area: 100~350 Sq.Ft

Indoor Unit Data

• Part Number: WT009ALFI22HLD
• Air Flow (Hi/Med/Lo): 382 / 324 / 265 CFM
• Sound Level (Hi/Med/Lo/Mute): 39/34/29/27 dB(A)
• Net Dimensions (WDH): 32-1/4 x 7-5/8 x 12 Inches
• Carton Dimensions (WDH): 35 x 10-3/8 x 15 Inches
• Net / Gross Weight: 19.8 / 24.3 Lbs

Outdoor Unit Data

• Part Number: YN009ALFI22RPD
• Sound Level: 50 dB(A)
• Net Dimensions (WDH): 28-5/8 x 12 x 21-5/8 Inches
• Carton Dimensions (WDH): 33-1/2  x 14-1/8 x 24 Inches
• Net / Gross Weight: 51.8 / 56.2 lbs
• Electrical Circuit Size: 20A (single-pole)
