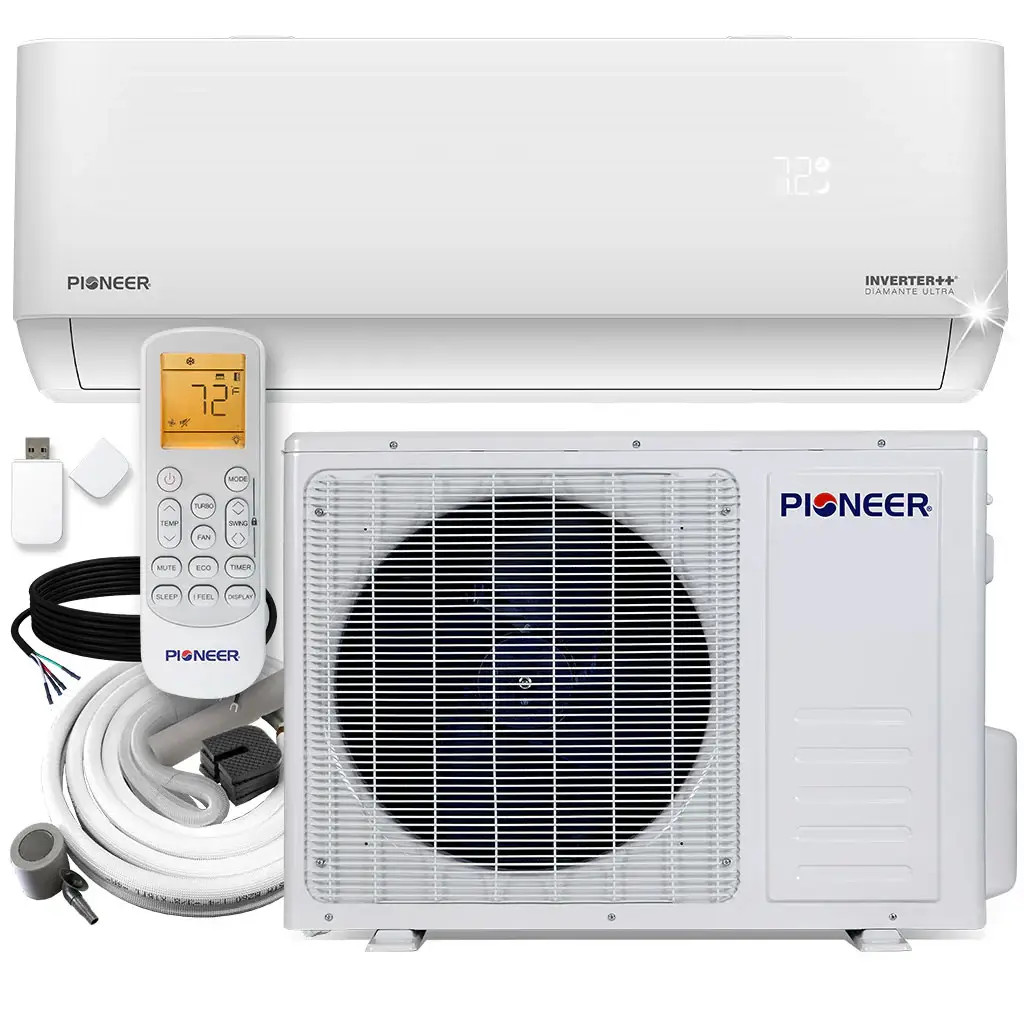

Pioneer® Diamante Ultra 12,000 BTU 23 SEER2 Ductless Mini-Split Inverter++ Energy-Star Wi-Fi Air Conditioner Heat Pump Full Set 230V with 16 Ft. Kit

Enhanced Modern Design

How do you improve upon an air handler that’s already silent? You make the appearance of it silent as well, with a premium encasing and elegant textures. A matte-frost finish ensures less fingerprints and time spent wiping. The curved edges give the system a softer look, and the LED display has been modified to show the set temperature in a more subdued fashion.

Cools like A Crisp Shower

Diamante Ultra drapes the room with a satisying breeze from above, without the mist. Cool air sinks from high to low, so we designed the system to let the conditioned air be “thrown” toward the ceiling, so that is can naturally reach as far as possible horizontally in the room, while also ensuring that the refreshing breeze is felt by all occupants of the room, no matter if they are sitting, standing, or lying down.

Summary

• Ultra High Efficiency Diamante Ultra Ductless Mini Split Heat Pump System
• Cooling capacity: 12,000 BTU/H with 23 SEER2/ 13 EER2 efficiency
• Heating capacity: 12,000 BTU/H with 9.5 HSPF2 / 3.5 COP efficiency
• Voltage: 208/230V, 60Hz, 1Ph
• High Wall Mounted Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode
• Low Ambient Unit (-13°F)
• Wireless Internet Access Included (Via Free Smartphone App)

What's Included

• Indoor Unit
• Outdoor Unit
• Wireless Remote Control (with wall holder and batteries)
• Internet Control Module
• 16 Ft. Copper Lines
• 16 Ft. Electrical Wire
• 10 Ft. Drain for indoor/outdoor
• Wall Passage Sleeve
• Putty for Wall Hole
• Leak Guard Sealer
• Wrapping Tape
• Installation Manual
• User’s Manual

Performance Data

• Power Supply: 230V, 60Hz, 1Ph
• Cooling Rated Capacity: 12,000 BTU/h (1 Ton)
• Rated Power Input (Cooling): 920W
• Cooling SEER2: 23 BTU/W.h
• Cooling EER2: 13 BTU/W.h
• Heating Rated Capacity: 12,000 BTU/h (1 Ton)
• Rated Power Input (Heating): 910W
• Heating HSPF2: 9.5 BTU/W.h
• Heating C.O.P.: 3.5 W/W
• Refrigerant Type: R410A
• Recommended Application Area: 200~450 Sq. F

Indoor Unit Data

• Part Number: WT012GLFI22HLD
• Air Flow (Hi): 471 / 382 / 294 CFM
• Sound Level (Hi/Med/Lo/Mute): 39/34/29/27 dB(A)
• Net Dimensions (WDH): 36-1/4 x 7-5/8 x 12 Inches
• Carton Dimensions (WDH): 39 x 10-3/8 x 15 Inches
• Net / Gross Weight: 23.1 / 26.5 Lbs

Outdoor Unit Data

• Part Number: YN012GLFI22RPD
• Sound Level: 52 dB(A)
• Net Dimensions (WDH): 28-5/8 x 12 x 21-5/8 Inches
• Carton Dimensions (WDH): 33-1/2  x 14-1/8 x 24 Inches
• Net / Gross Weight: 59.1 / 64.4 lbs
• Electrical Circuit Size: 15A (double-pole)
