Pioneer® Diamante Pro Series 9,000 BTU 19 SEER2 Ductless Mini-Split Air Conditioner Inverter+ Heat Pump Full Set 115V with 16 Ft. Kit

Experience premium comfort and efficiency with the Pioneer® Diamante Pro Series 9,000 BTU 19 SEER2 Ductless Mini-Split Air Conditioner Inverter+ Heat Pump. This full set includes everything you need for installation and operation. Enjoy precise temperature control and energy savings with the inverter+ technology

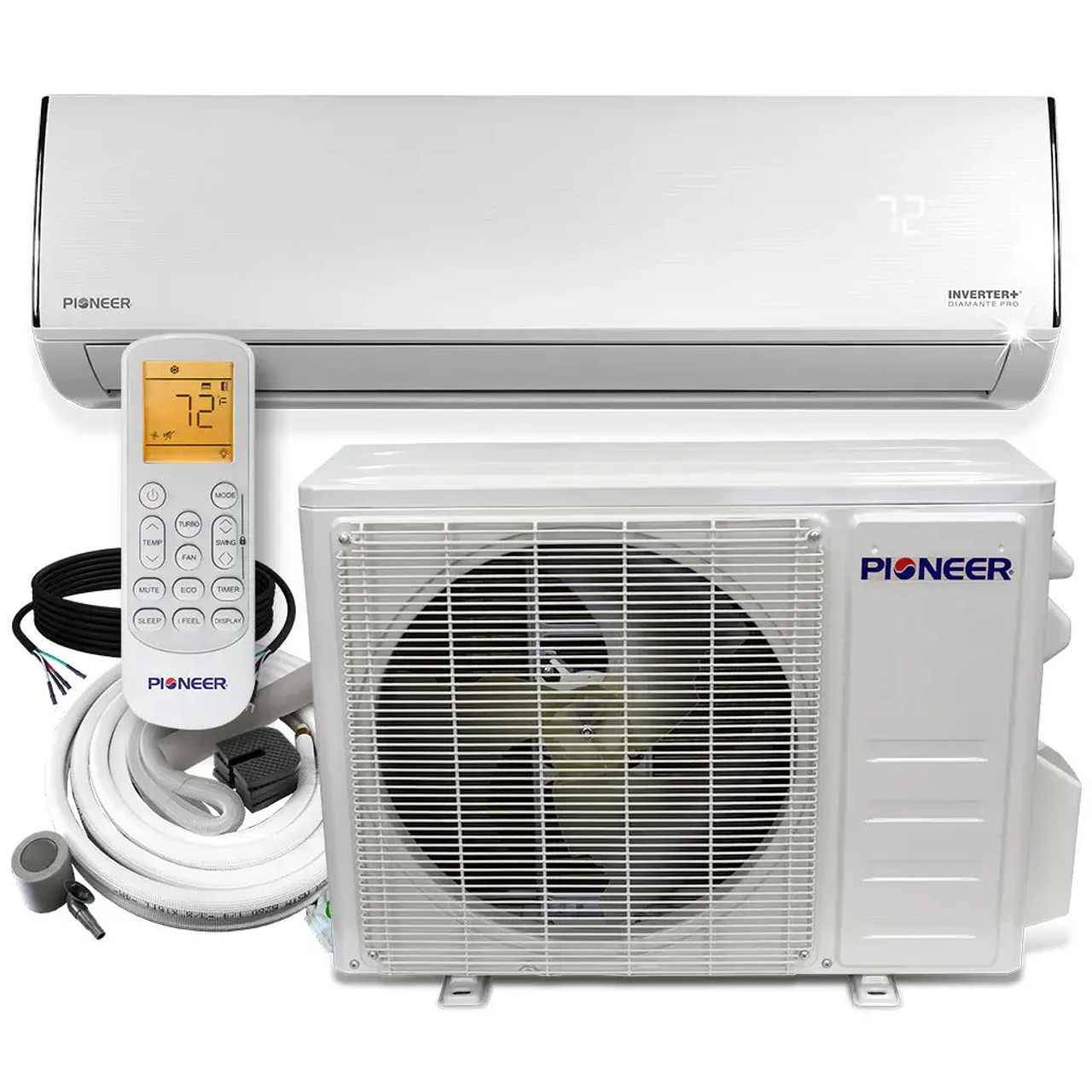

What's Included

• Indoor Unit
• Outdoor Unit
• Wireless Remote Control (with wall holder and batteries)
• 16 Ft. Copper Lines
• 16 Ft. Electrical Wire
• 10 Ft. Drain for indoor/outdoor
• Wall Passage Sleeve
• Putty for Wall Hole
• Leak Guard Sealer
• Wrapping Tape
• Installation Manual
• User’s Manual

Features

• Dual Swing
• Dual Drainage
• Low Noise
• High Efficiency

Performance Data

• Power Supply: 115V, 60Hz, 1Ph
• Cooling Rated Capacity: 9,000 BTU/h
• Cooling Capacity Range: 5,800~10,300 BTU/h
• Cooling SEER2: 19.0 BTU/W.h
• Cooling EER2: 10.0 BTU/W.h
• Heating Rated Capacity: 10,000 BTU/h
• Heating Capacity Range: 5,400~10,900 BTU/h
• Heating HSPF2 (Region IV/V): 8.5 / 7.0 BTU/W.h
• Heating C.O.P.2 (47°F/5°F): 3.41 / 1.75 W/W
• Refrigerant Type: R410A/28.6 Oz.
• Suitable Area: 100~350 Sq.F

Indoor Unit Data

• Part Number: WT009ALFI19HLE
• Air Flow (Hi/Med/Lo): 353 / 288 / 250 CFM
• Sound Level (Hi/Med/Lo): 38 / 35 / 32 dB(A)
• Net Dimensions (WDH): 32 x 8-1/8 x 11-1/2 Inches
• Carton Dimensions (WDH): 34-7/8 x 11 x 14-1/2 Inches
• Net / Gross Weight: 19.8 / 24.2 lbs

Outdoor Unit Data

• Part Number: YN009ALFI19RPE
• Breaker Needed: 20A (single-pole)
• Sound Level: 50 dB(A)
• Net Dimensions (WDH): 28-5/8 x 12 x 21-5/8 Inches
• Carton Dimensions (WDH): 33-1/2 x 14-1/8 x 24 Inches
• Net / Gross Weight: 60.6 / 69.5 lbs
