Description
Summary
- Ultra High Efficiency Inverter++ ceiling concealed duct split heat pump system
- Cooling capacity: 9,000 BTU/H with 19.2 SEER2 / 12.5 EER2 efficiency
- Heating capacity: 10,000 BTU/H with 10.2 HSPF2/ 3.62 COP2 efficiency
- Voltage: 208~230 V, 60 Hertz, 1 Ph
- Ceiling Concealed Ducted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Customizable length copper line set with flare connections
- Energy-Star Certified
REFRIGERANT
R410A Pre-Charged Outdoor Unit, accommodating refrigerant line lengths up to 25 ft. per circuit.
IMPORTANT
The installation kit is necessary for the system to function. Do not select the "Without Installation Kit" option from the dropdown unless you are providing one yourself. The installation kit is: copper refrigeration lines, communication wire between indoor and outdoor unit, 10 ft drain hose, wall cap, sleeve, and putty.
Concealed Mini Splits
Pioneer® Ducted concealed mini split systems offer climate control, including hidden mini split AC for multiple rooms and areas, utilizing a network of air ducts (existing or field designed) using a single set of equipment. The concealed duct mini split system is ideal for use in specific climate zones with distinctive separations, such as a master suite, where the zone can be split up into sub zones (a bathroom, study, dressing room, etc.). In this setting, a single set of equipment will properly condition all areas of the entire zone based on the same comfort settings. Our hidden ducted mini split system offerings include six capacities—such as our ceiling concealed mini split and mini split slim duct systems—to cover distinctive zones of every size and complexity. Check out our selection of concealed duct mini split systems today, and start enjoying hidden duct mini split AC and heat!
More details about Pioneer® RYB Series

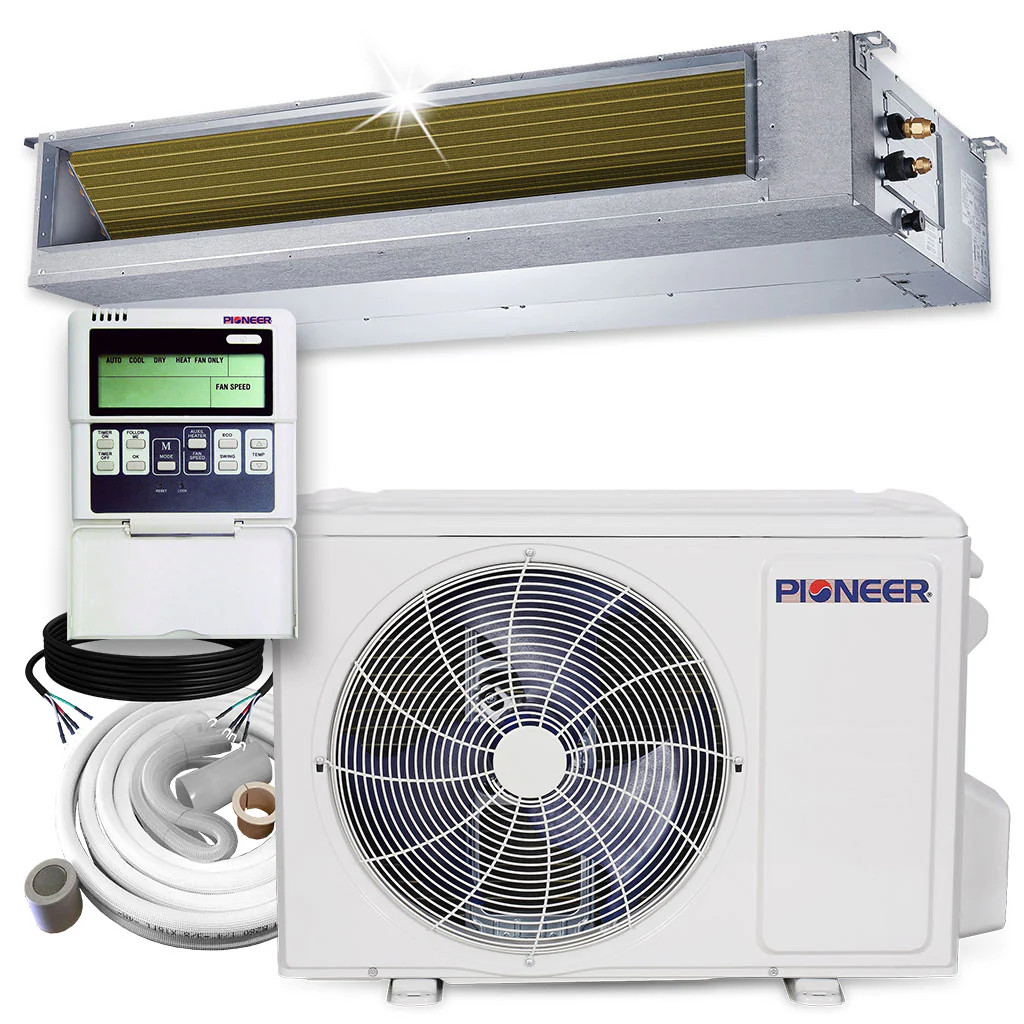

What's Included
- Indoor Unit
- Outdoor Unit
- Wire Remote Control
- Various Installation Kit Options Available
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Performance Data
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 9,000 BTU/h
- Cooling Capacity Range: 2,220~11,600 BTU/h
- Cooling SEER2: 19.2 BTU/W.h
- Cooling EER2: 12.5 BTU/W.h
- Heating Rated Capacity: 10,000 BTU/h
- Heating Capacity Range: 2,240~13,350 BTU/h
- Heating HSPF2 (Region IV/V): 10.2 / 8 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.62 / 2.09 W/W
- Refrigerant Type: R410a
- Suitable Area: 100~350 Sq.F
Indoor Unit Data
- Part Number: RB009GMFILDFHD
- Air Flow (Hi/Med/Lo): 353 / 282 / 176 CFM
- External Static Pressure: 0.0~0.16 Inch WC
- Sound Level (Hi/Med/Lo): 33.5 / 28.5 / 27.0 dB(A)
- Net Dimensions (WDH): 27"-1/2 x 20" x 7"-7/8
- Carton Dimensions (WDH): 33"-7/8 x 21"-1/4 x 11"-1/4
- Net / Gross Weight: 39.0 / 48.3 Lbs
Outdoor Unit Data
- Part Number: YN009GMFI22RPE
- Sound Level: 54.5 dB(A)
- Breaker Needed: 15A (double-pole)
- Net Dimensions (WDH): 30"-1/8 x 11"-7/8 x 21"-7/8
- Carton Dimensions (WDH): 34"-7/8 x 13"-1/4 x 24"
- Net / Gross Weight: 63.7 / 69.0 Lbs
