Pioneer® 56,000 BTU 17 SEER2 Ducted Central Split Inverter+ Air Conditioner Heat Pump System, 2nd Generation

Ultra-Flexible Lineset Routing

When it comes to connecting the outdoor condenser to the indoor air handler, Pioneer's DYR series offers an industry-leading allowability for both difference in height (98 feet) as well as total length of run (164 feet for 24K and 246 feet for 36K and above).

Summary

• Ultra High Efficiency Inverter+ central ducted split heat pump system
• Cooling capacity: 56,000 BTU/H with 17 SEER2 / 8.25 EER2 efficiency
• Heating capacity: 56,000 BTU/H with 8.5 HSPF2 / 3.1 COP2 efficiency
• Voltage: 208~230 V, 60 Hertz, 1 Ph
• Central Ducted Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode
• Communicating system with dedicated signal transmission
• Includes Electric Strip Heater

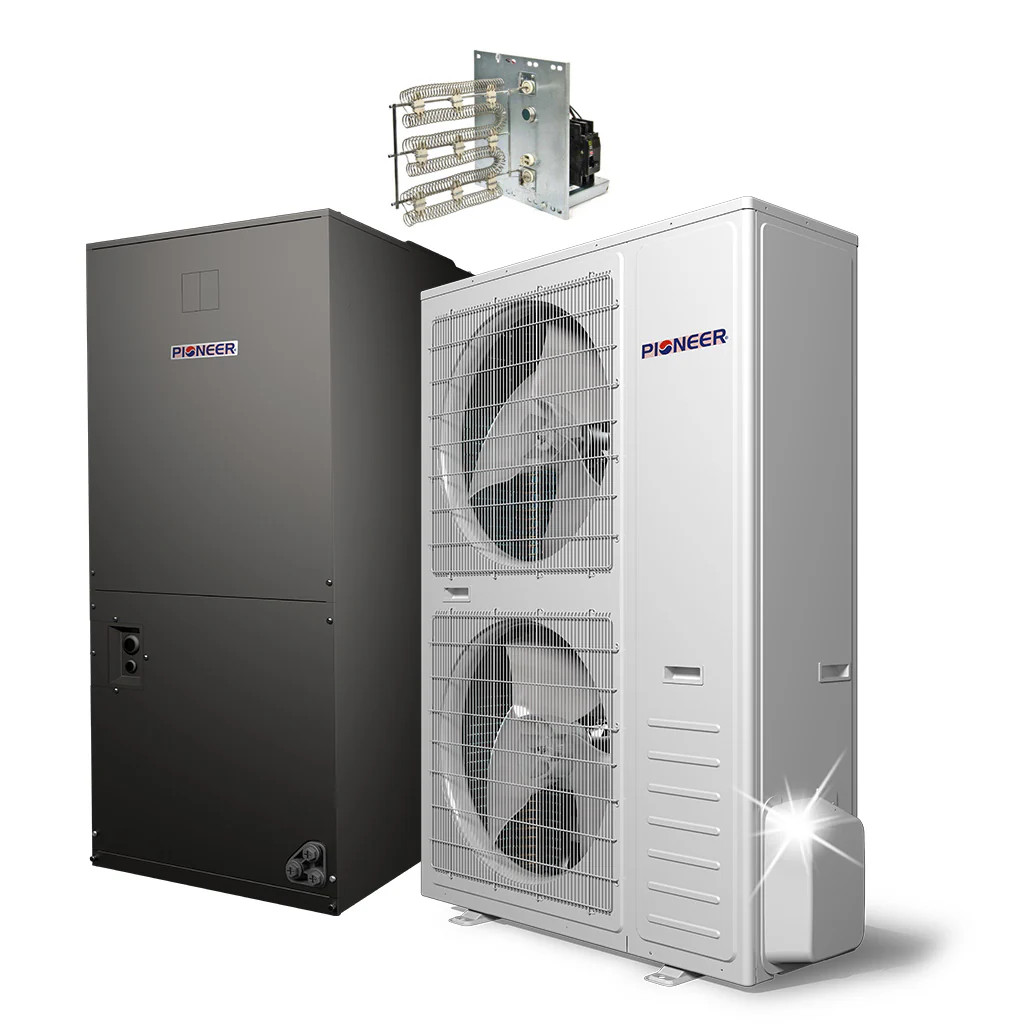

  What's Included

  • Indoor Unit (Downflow-capable)
  • Outdoor Unit (Side-Discharge)
  • Electric Strip Heater (10 kW)
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty

Performance Data

• Power Supply: 208~230V, 60Hz, 1Ph
• Max Cooling Rated Capacity (Min~Max): 56,000 (18,300~59,400) BTU/h
• Cooling SEER2: 17 BTU/W.h
• Cooling EER2: 8.25 BTU/W.h
• Max Heating Rated Capacity (Min~Max): 56,000 (17,600 ~ 57,500) BTU/h
• Heating HSPF2 (Region IV): 8.5 BTU/W.h
• Heating C.O.P.2 (47°F/5°F): 3.1 / 1.86 W/W
• Refrigerant Type: R410a
• Suitable Area: 2,000 Sq.F

Indoor Unit Data

• Model: DR060GHFD18HT2

• Air Flow: 1706 CFM
• Sound Level: 65 dB(A)
• Fan Motor Type: Multi-Speed ECM
• Net Dimensions (WDH): 22 × 24 × 53-7/8 Inches
• Carton Dimensions (WDH): 25-1/4 × 28 × 55-1/2 Inches
• Net / Gross Weight: 187 / 214 Lbs

Outdoor Unit Data

• Model: YH4860GHFD18R2

• Sound Level: 60 dB(A)
• Metering Device: EXV
• Net Dimensions (WDH): 37-3/8 × 13-3/8 × 54-1/2 Inches
• Carton Dimensions (WDH): 43-3/4 ×18-1/8 × 60-1/4 Inches
• Net / Gross Weight: 251 / 278 Lbs
